GeForce GTX TITAN Z vs Radeon Pro 5500 XT

If you are going to buy a new graphics card and are choosing between GeForce GTX TITAN Z and Radeon Pro 5500 XT, there are a couple of things to consider. Cards with more VRAM in general perform better and allow you to play on higher graphics settings. Size also makes a difference. A model with a large heatsink can occupy up to three expansion slots on a motherboard. Be sure you have enough room in your PC case. When comparing GPUs with different architectures, more processing cores and even higher TFLOPS will not always translate to better performance. To help you decide which GPU you need, we have measured frame rates in a number of popular games. For more on how the GeForce GTX TITAN Z stacks up against Radeon Pro 5500 XT, check out specs charts below.

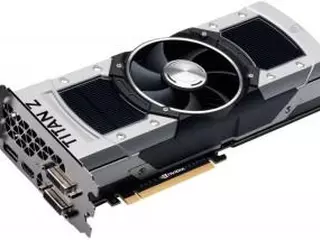

GeForce GTX TITAN Z Check Price

Radeon Pro 5500 XT

Main Specs

	GeForce GTX TITAN Z	Radeon Pro 5500 XT
Power consumption (TDP)	375 Watt	125 Watt
Interface	PCIe 3.0 x16	PCIe 4.0 x8
Supplementary power connectors	Two 8-pin	None
Memory type	GDDR5	GDDR6
Maximum RAM amount	12 GB	8 GB
Display Connectors	2x DVI, 1x HDMI, 1x DisplayPort	No outputs
	Check Price

GeForce GTX TITAN Z has 200% more power consumption, than Radeon Pro 5500 XT.
GeForce GTX TITAN Z is connected by PCIe 3.0 x16, and Radeon Pro 5500 XT uses PCIe 4.0 x8 interface.
GeForce GTX TITAN Z has 4 GB more memory, than Radeon Pro 5500 XT.
Both cards are used in Desktops.
GeForce GTX TITAN Z is build with Kepler architecture, and Radeon Pro 5500 XT - with RDNA 1.0.
GeForce GTX TITAN Z is manufactured by 28 nm process technology, and Radeon Pro 5500 XT - by 7 nm process technology.
Memory clock speed of Radeon Pro 5500 XT is 7 MHz higher, than GeForce GTX TITAN Z.

Game benchmarks


high / 1080p	40−45	40−45
ultra / 1080p	27−30	27−30
QHD / 1440p	21−24	21−24
4K / 2160p	12−14	12−14
low / 720p	65−70	65−70
medium / 1080p	50−55	50−55
GeForce GTX TITAN Z and Radeon Pro 5500 XT have the same average FPS in Assassin's Creed Odyssey.
high / 1080p	65−70	65−70
ultra / 1080p	55−60	55−60
QHD / 1440p	40−45	40−45
4K / 2160p	21−24	21−24
low / 720p	110−120	110−120
medium / 1080p	70−75	70−75
GeForce GTX TITAN Z and Radeon Pro 5500 XT have the same average FPS in Battlefield 5.
low / 768p	50−55	50−55
QHD / 1440p	12−14	14−16
The average gaming FPS of Radeon Pro 5500 XT in Call of Duty: Warzone is 3% more, than GeForce GTX TITAN Z.
low / 768p	250−260	250−260
medium / 768p	220−230	220−230
ultra / 1080p	200−210	200−210
QHD / 1440p	130−140	130−140
4K / 2160p	90−95	90−95
high / 768p	210−220	220−230
The average gaming FPS of Radeon Pro 5500 XT in Counter-Strike: Global Offensive is 1% more, than GeForce GTX TITAN Z.
low / 768p	60−65	60−65
medium / 1080p	55−60	55−60
GeForce GTX TITAN Z and Radeon Pro 5500 XT have the same average FPS in Cyberpunk 2077.
low / 768p	120−130	120−130
medium / 768p	110−120	110−120
ultra / 1080p	100−110	100−110
GeForce GTX TITAN Z and Radeon Pro 5500 XT have the same average FPS in Dota 2.
high / 1080p	50−55	50−55
ultra / 1080p	50−55	50−55
QHD / 1440p	30−35	30−35
4K / 2160p	18−20	18−20
low / 720p	90−95	90−95
medium / 1080p	55−60	55−60
GeForce GTX TITAN Z and Radeon Pro 5500 XT have the same average FPS in Far Cry 5.
high / 1080p	70−75	70−75
ultra / 1080p	55−60	55−60
QHD / 1440p	30−35	35−40
4K / 2160p	27−30	27−30
low / 720p	190−200	190−200
medium / 1080p	120−130	120−130
The average gaming FPS of Radeon Pro 5500 XT in Fortnite is 1% more, than GeForce GTX TITAN Z.
high / 1080p	70−75	70−75
ultra / 1080p	50−55	50−55
QHD / 1440p	35−40	35−40
4K / 2160p	27−30	27−30
low / 720p	110−120	120−130
medium / 1080p	75−80	75−80
The average gaming FPS of Radeon Pro 5500 XT in Forza Horizon 4 is 3% more, than GeForce GTX TITAN Z.
low / 768p	150−160	150−160
medium / 768p	130−140	130−140
high / 1080p	80−85	80−85
ultra / 1080p	35−40	35−40
QHD / 1440p	27−30	27−30
GeForce GTX TITAN Z and Radeon Pro 5500 XT have the same average FPS in Grand Theft Auto V.
high / 1080p	30−33	30−33
ultra / 1080p	24−27	24−27
QHD / 1440p	18−20	20−22
4K / 2160p	10−12	10−12
low / 720p	75−80	80−85
medium / 1080p	40−45	40−45
The average gaming FPS of Radeon Pro 5500 XT in Metro Exodus is 2% more, than GeForce GTX TITAN Z.
low / 768p	130−140	130−140
medium / 1080p	130−140	130−140
GeForce GTX TITAN Z and Radeon Pro 5500 XT have the same average FPS in Minecraft.
ultra / 1080p	14−16	14−16
low / 720p	110−120	110−120
medium / 1080p	18−20	18−20
GeForce GTX TITAN Z and Radeon Pro 5500 XT have the same average FPS in PLAYERUNKNOWN'S BATTLEGROUNDS.
high / 1080p	27−30	30−33
ultra / 1080p	18−20	18−20
QHD / 1440p	14−16	14−16
4K / 2160p	9−10	9−10
low / 720p	75−80	75−80
medium / 1080p	40−45	40−45
GeForce GTX TITAN Z and Radeon Pro 5500 XT have the same average FPS in Red Dead Redemption 2.
low / 768p	150−160	150−160
medium / 768p	100−105	100−110
high / 1080p	55−60	55−60
ultra / 1080p	30−35	30−35
4K / 2160p	18−20	20−22
The average gaming FPS of Radeon Pro 5500 XT in The Witcher 3: Wild Hunt is 1% more, than GeForce GTX TITAN Z.
low / 768p	90−95	90−95
medium / 768p	60−65	60−65
ultra / 1080p	55−60	55−60
GeForce GTX TITAN Z and Radeon Pro 5500 XT have the same average FPS in World of Tanks.

Full Specs

	GeForce GTX TITAN Z	Radeon Pro 5500 XT
Architecture	Kepler	RDNA 1.0
Code name	GK110B	Navi 14
Type	Desktop	Workstation
Release date	28 May 2014	4 August 2020
Pipelines	2880	1536
Core clock speed	705 MHz
Boost Clock	876 MHz	1757 MHz
Transistor count	7,080 million	6,400 million
Manufacturing process technology	28 nm	7 nm
Texture fill rate	338 billion/sec	168.7
Floating-point performance	2x 5,046 gflops
Length	10.5" (26.7 cm)
Memory bus width	768-bit (384-bit per GPU)	128 Bit
Memory clock speed	7.0 GB/s	14 GB/s
Memory bandwidth	672 GB/s	224.0 GB/s
DirectX	12 (11_1)	12 (12_1)
Shader Model	5.1	6.5
OpenGL	4.4	4.6
OpenCL	1.2	2.0
Vulkan	1.1.126	1.2
CUDA	+
CUDA cores	5760
Bus support	PCI Express 3.0
Height	4.376" (11.1 cm)
Multi monitor support	4 displays
HDMI	+
HDCP	+
Maximum VGA resolution	2048x1536
Audio input for HDMI	Internal
3D Gaming	+
3D Vision	+
3D Vision Live	+
Bitcoin / BTC (SHA256)	325 Mh/s
Blu Ray 3D	+
