Samsung's first PCIe 6.0 SSD is now in mass production — but not for your PC

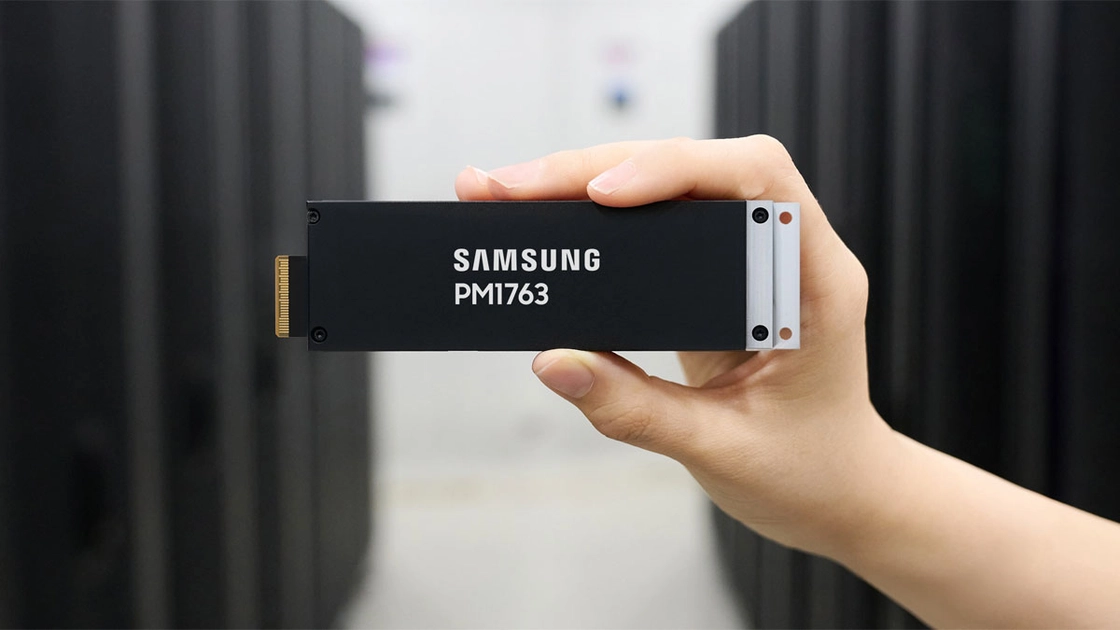

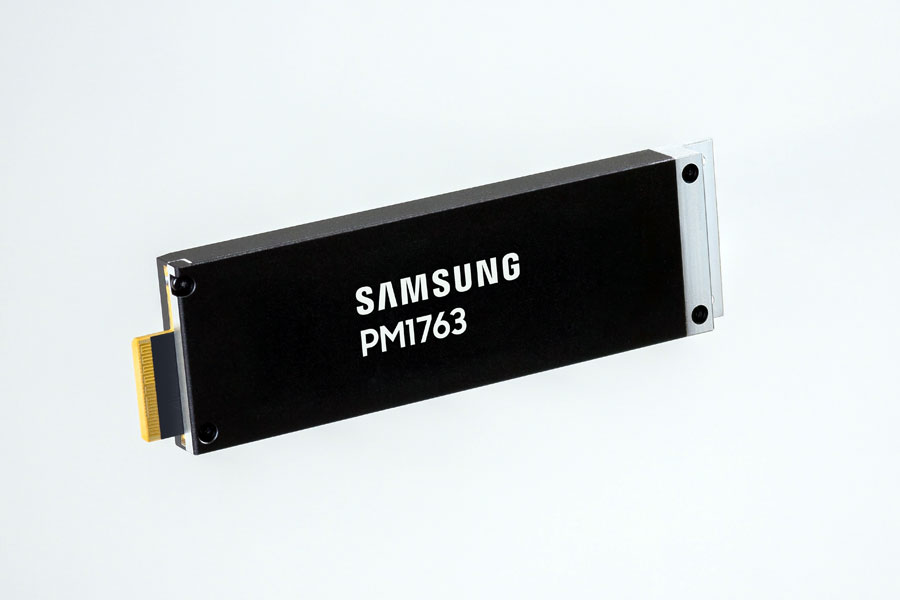

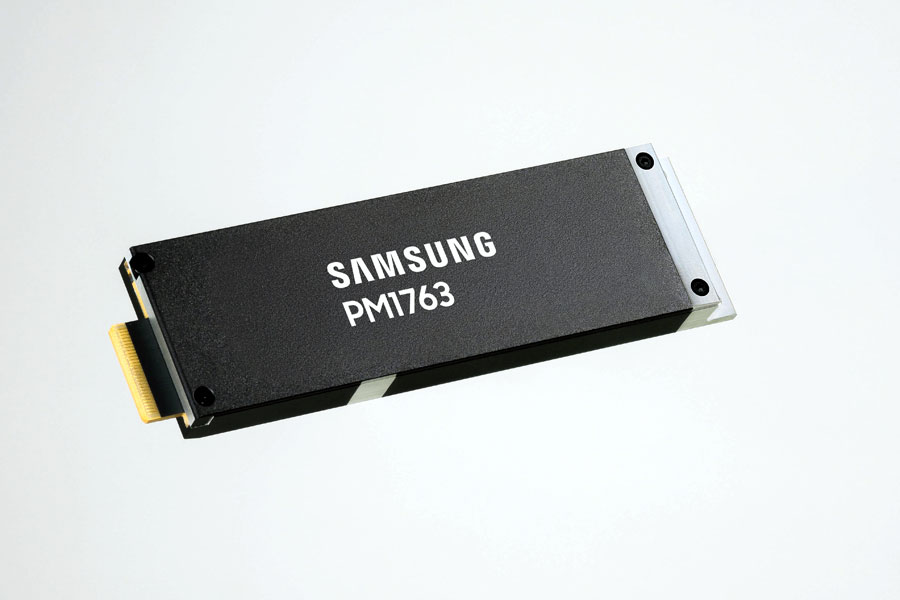

Samsung has started mass production of the PM1763, its first PCIe 6.0 enterprise SSD, targeting AI data centers that need to move enormous amounts of data as fast as possible. The 16TB model hits 28,400 MB/s sequential read and 21,900 MB/s write — more than double the speed of its predecessor, the PM1753. For cloud providers running large language models, that gap translates directly into lower training costs and faster inference.
The numbers
PCIe 6.0 doubles the bandwidth of PCIe 5.0 by using a signaling technology called PAM4 (pulse-amplitude modulation). In practice, the PM1763 can load a 40GB language model — the kind that powers AI assistants — in roughly 1.4 seconds, according to Samsung Official Newsroom. That matters because every second an AI accelerator waits for data is a second it isn't doing useful work, and GPU time at hyperscale is expensive.
The drive is available in 4TB, 8TB, and 16TB capacities. Samsung also claims 1.8x better power efficiency compared to the PM1753 — meaning data centers get significantly more throughput per watt, which affects both operating costs and sustainability targets.
Built for liquid-cooled server rooms
Heat is the enemy of fast storage. Samsung designed the PM1763 specifically for liquid-cooled server environments using Direct-to-Chip (D2C) cooling, which pulls heat away from the controller and memory chips directly. That prevents the drive from throttling its speed during the kind of sustained, multi-hour compute sessions common in AI training runs.
On the security side, the PM1763 supports post-quantum cryptography (PQC) — encryption designed to resist attacks from future quantum computers — alongside TDISP, a protocol that secures the interface between the drive and the host CPU. Both are increasingly relevant as AI infrastructure becomes a target for state-level threats.
Nothing for desktops yet
The PM1763 is strictly an enterprise product sold through OEM channels. No pricing has been disclosed. AWS, Azure, and Google Cloud are the obvious first customers, though Samsung hasn't confirmed specific partnerships.
More to the point for anyone building a gaming rig or workstation: consumer PCIe 6.0 SSDs are still years away. The CEO of controller maker Silicon Motion has stated that PCIe 6.0 drives for PCs won't arrive until around 2030, per Tom's Hardware. Cost and engineering complexity are the barriers. PCIe 5.0 SSDs will remain the consumer ceiling for the rest of the decade.
